Product Details:
|
| Name: | HFOV Lens Drone Lens | Specification: | HK-9139AS-648-1 |
|---|---|---|---|
| Sensor Size: | 1/4" | Wavelength: | λ 400-700nm（COLOR) |
| Field Of View (diagonal): | D：130° H 90° | Optical Distortion(diagonal): | ＜-30% |
| Element: | 4E + IR | ||
| High Light: | HFOV drone telephoto lens,2.35mm cctv camera lens,F2.6 HFOV cctv camera lens |
||

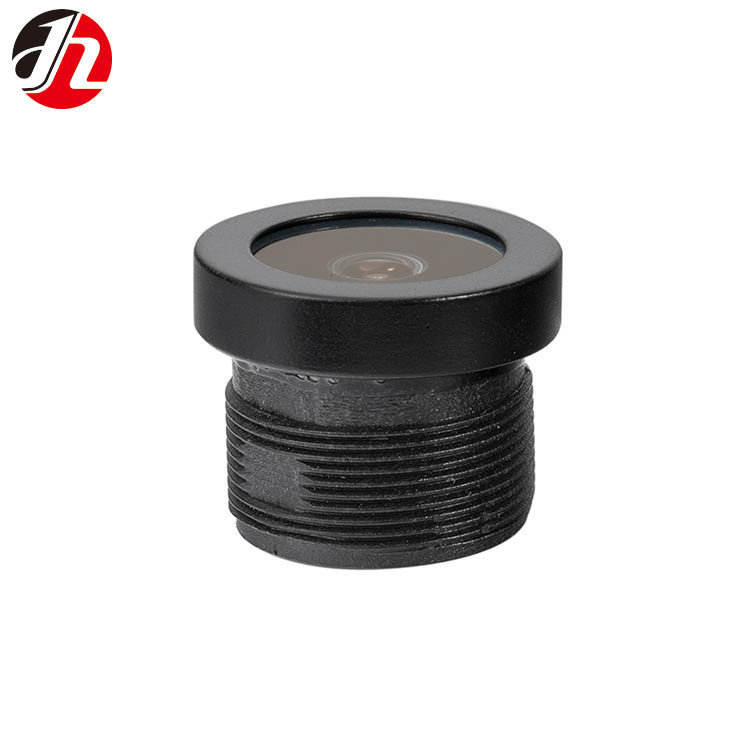

HFOV Lens Drone Lens / UAV Lens Refrigerator Lens Microwave Oven Lens Video Doorbell Lens
Product features
Body worn camera/Video conference camera/Smart home&robot/Automotive camera lens
1. 360° panoramic surveillance CCTV camera lens.
2. High definition lenses with optical filter.
3. Can be used in multiple field
Product Details
| Specification | HK-9139AS-648-1 |
| Sensor Size | 1/4" |
| Wavelength | λ 400-700nm(COLOR) |
| Focal Length(EFL) | f 2.35 mm |
| F/NO (Infinite) | F/NO 2.60 |
| Back Focal Length | BFL 3.72 mm |
| Flange back length | FB 2.69 mm |
| Field Of View (diagonal) | D:130° H 90° |
| Optical Distortion(diagonal) | ＜-30% |
| Thread Size | M12*P0.5 |
| Element | 4E+IR |
· Name: Lens
· Brand: GTD
· Material: rare metal
· Uses: smart homeware products, such as security and protection monitoring, APP Wifi camera, IP camera, smart digital door viewer, visual door bell, sweeping robot, refrigerator and air conditioner etc
PRODUCTION PROCESS
1 check and clean materials
2 assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
