Product Details:
|
| Specification: | HK-9107-1335-1 | Sensor Size: | φ3.7 |
|---|---|---|---|
| Focal Length(EFL): | EFL 0.81 Mm | Field Of View (diagonal): | D：200° |
| Optical Distortion(diagonal): | <-29% | Thread Size: | M10*P0.5 |
| High Light: | M10x0.5 Vehicle Camera Lenses,Vehicle Camera Lenses 0.81mm,360 Panoramic Lens M10x0.5 |
||
Vehicle Camera Lenses Car VGA Smart Auxiliary Drive 2D 3D 360 Aerial Panoramic View
· Name: Lens
· Brand: GTD
· Material: Plastic, Glass
· Uses: digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field.

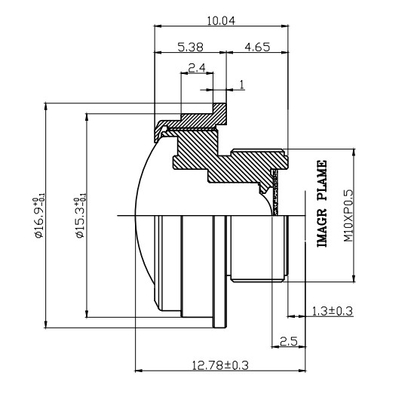

Product Details
| Specification | HK-9107-1335-1 |
| Sensor Size | φ3.7 |
| Wavelength | λ400-700nm(COLOR) |
| Focal Length(EFL) | EFL 0.81 mm |
| F/NO (Infinite) | F/NO 2.0 |
| Back Focal Length | BFL 2.50 mm |
| Flange back length | FB 1.3 mm |
| Field Of View (diagonal) | D:200° |
| Optical Distortion(diagonal) | <-29% |
| Thread Size | M10*P0.5 |
| Element | 3G3P + 1IR |
PRODUCTION PROCESS
1 check and clean materials
2 assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
Lens production inspection process
Quality Guarantee
car camera drop-ball standard
salt spray test
waterproof test
against UV light
IP6K9K
IP68
ROHS
film strength's resistance to scratch
