Product Details:
|
| Thread Size: | M12 * P0.5 | Specification: | HK-8145-457-1 |
|---|---|---|---|
| Sensor Size: | 1/3" | Wavelength: | λ 400-700nm（COLOR) |
| Optical Distortion (Diagonal): | ＜-5% | Focal Length (EFL): | F 8 Mm |
| F/NO (Infinite): | F/NO 2.0 | Flange Back Length: | FB 6.51 Mm |
| High Light: | 8mm Vehicle Camera Lenses,ISO9001 Vehicle Camera Lenses,1/3" m12 wide angle lens |
||

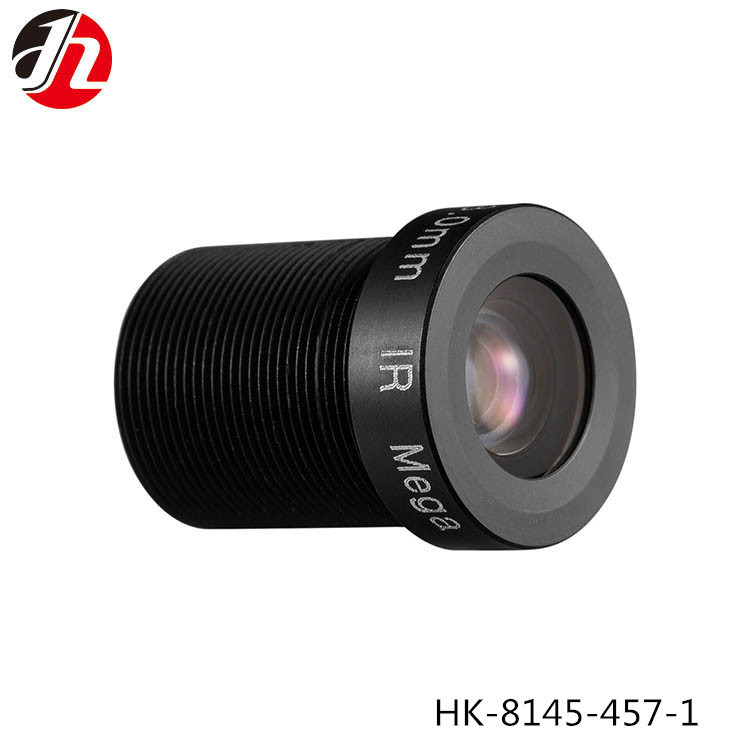

Vehicle Camera Lenses Car Waterproof HD Rear View Wide Angle Infrared Vehicle Lens
In addition to our lens design technology, we made use of our camera design technology cultivated through digital camera and Ricoh's 360-degree camera, and knowledge of CMOS sensors which are used as photo detectors, thus enabling to propose the best optical solution.
Product Details
| Specification | HK-8145-457-1 |
| Sensor size | 1/3" |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | f 8 mm |
| F/NO (INFINITE) | F/NO 2.0 |
| BACK FOCAL LENGTH | BFL 7.62 mm |
| FLANGE BACK LENGTH | FB 6.51 mm |
| FIELD OF VIEW (DIAGONAL) | D:40° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-5% |
| Thread Size | M12*P0.5 |
| Element | 6G+IR |
· Name: Lens
· Brand: GTD
· Material: Glass
· Uses: There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ADAS and car night-vision device etc
Lens production inspection process
Quality Guarantee
car camera drop-ball standard
salt spray test
waterproof test
against UV light
IP6K9K
IP68
ROHS
film strength's resistance to scratch
