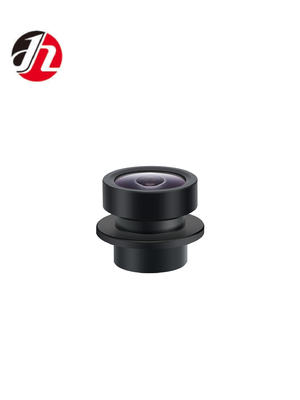

Product Details:
|
| Type: | Car DVR Lens | Specification: | JZ-8338 |
|---|---|---|---|
| Video Resolution: | 1920 * 1080 | Sensor Size: | 1/2.8"、1/2.9"、1/3" |
| Wavelength: | λ 400-700nm（COLOR) | Max Image Height: | Ø6.7 |
| Optical Distortion: | ＜-67% | Element: | 6G + IR |
| Highlight: | Dustproof DVR Camera Lenses,Waterproof DVR Camera Lenses,2MP-3MP DVR Camera Lenses |
||
| SPECIFICATION: | JZ-8338 |
| SENSOR SIZE | 1/2.8"(IMX290),1/2.9"(OV2775),1/3"(IMX224) |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | f2.95mm |
| F/NO (INFINITE) | F/NO 2.0 |
| TOTAL LENGTH | TTL 17.42 mm |
| FLANGE BACK LENGTH | FB 4.2 mm |
| FIELD OF VIEW | D=149° H=122° V=63° |
| RELATIVE ILLUMINATION |
＞ 65%
|
| THREAD SIZE | M12*P0.5 |
| ELEMENT | 6G+IR |
· Name: Lens
· Brand: GTD
· Material: rare metal
· Uses: There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ADAS and car night-vision device etc
EXAMPLE:JZ-8338-1582-1
Wide-Angle View: To capture a broader view of the road, car DVR lenses often feature a wide-angle design, with a field of view that can reach 120° or wider, allowing for better recording of the surroundings.
Night Vision Capability: Some car DVR lenses come with excellent low-light performance, enabling them to record clear video in nighttime or low-light conditions.
Waterproof and Dustproof: Car DVR lenses are designed to withstand outdoor conditions and typically have certain levels of waterproof and dustproof capabilities to adapt to various weather conditions.
Temperature Resistance: Car DVR lenses are built to withstand extreme temperatures, operating reliably in both hot and cold climates.
1 check and clean materials
2.assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
1.Why do we choose Guangtongdian Technology?
A:We promise:All of our products are in line with industry standards.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All products were tested 100% before shipment.
2.What is the applicable range of this product?
A:Car ,360 degree panoramic camera,SLR VR Camera,Medical,Sports DV,Self-driving car,look around,Infrared vehicle,ADAS,Driving recorder.
3.Can your products pass ROHS certificate?
A:Yes,our products meet the industrial standards,like:TS16949/ISO9001/ROHS.
4.Accept sample order?What is your minimum order quantity?
A:sample order is accept, but the price is different from the big ones.
5.What are the shipping ways you can offer?
A:By air/sea according to customers’ requirements.
6.Do your products come with warranty?
A:Yes,One year warranty for non-human damage.
