Product Details:
|
| Sensor Size: | OV2775 | Material: | Aluminum , Glass , Plastic |
|---|---|---|---|
| Focal Length (EFL): | F 3.0 Mm | Field Of View (Diagonal): | D 150°H 120°V 62° |
| Optical Distortion (Diagonal): | ＜-70.7% | Element: | 5G + IR |
| Highlight: | 1.13mm Panoramic Camera Lens,F2.0 Panoramic Camera Lens,Self Driving M12 CCTV Lens |
||

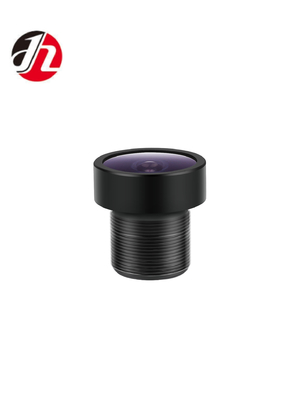

HD pixel Digital Video Recorder lens - Driving Car Lens
| Specification | JZ-8242 |
| Sensor Size | 1/2.7",1/2.8",1/2.9",1/3" |
| Wavelength | λ 400-700nm(COLOR) |
| Focal Length(EFL) | f 3.0 mm |
| F/NO (Infinite) | F/NO 2.0 |
| Back Focal Length | BFL 5.18 mm |
| Flange back length | FB 4.38 mm |
| Field Of View (diagonal) | D:210°H 210°V 210° |
| Optical Distortion(diagonal) | ＜-70.7% |
| Thread Size | M12*P0.5 |
| Element | 5G+IR |
There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ADAS and car night-vision device etc.
Wide-Angle View: To capture a broader view of the road, car DVR lenses often feature a wide-angle design, with a field of view that can reach 120° or wider, allowing for better recording of the surroundings.
Night Vision Capability: Some car DVR lenses come with excellent low-light performance, enabling them to record clear video in nighttime or low-light conditions.
Waterproof and Dustproof: Car DVR lenses are designed to withstand outdoor conditions and typically have certain levels of waterproof and dustproof capabilities to adapt to various weather conditions.
Temperature Resistance: Car DVR lenses are built to withstand extreme temperatures, operating reliably in both hot and cold climates.
1. Check and clean materials
2. Assemble the bottom lens/spacer
3. Assemble the middle lens/spacer
4. Waterproof rubber ring
5. Assemble the lens
6. Lock the lid
7. Check the configuration file
8. Surface inspection
9. Glue UV glue
10. Curing UV glue
11. Waterproof test (airtight test)
12. Vibration test
13. Clean the dust caps
14. Attach IR
Spot check of finished product/warehouse for conformity
1. Why do we choose Guangtongdian Technology?
A: We promise:All of our products are in line with industry standards.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All products were tested 100% before shipment.
2. What is the applicable range of this product?
A: Car panoramic camera,360 degree panoramic camera,SLR VR Camera,Medical,Sports DV,Self-driving car,look around,Infrared vehicle,ADAS,Driving recorder,Refrigerator,Video doorbell ETC.
3. Can your products pass ROHS certificate?
A: Yes,our products meet the industrial standards,like:TS16949/ISO9001/ROHS.
4. Accept sample order?What is your minimum order quantity?
A: sample order is accept, but the price is different from the big ones.
5. What are the shipping ways you can offer?
A: By air/sea according to customers’ requirements.
6. Do your products come with warranty?
A: Yes,One year warranty for non-human damage.
