Product Details:
|
| Color: | Black | Focus Type: | Ultra-wide Lens |
|---|---|---|---|
| MAX Image Height: | Ø6.6 | M Pixel: | 2MP |
| Material: | Aluminum , Glass , Plastic | Waterproof Grade: | IP67 |
| Thread Size: | φ9（AA) | Element: | 2G4P + IR |
| Highlight: | F2.3 CCTV wide angle lenses,2.25mm CCTV wide angle lenses,1/3" wide angle lens for security camera |
||

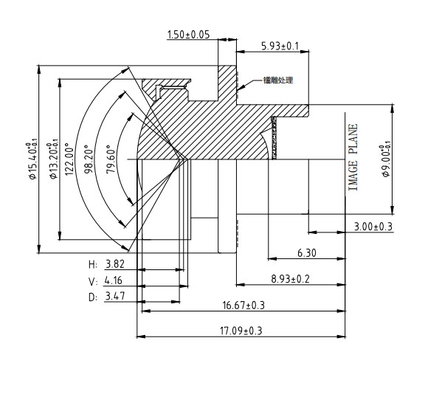

| SPECIFICATION: | JZ-9209 |
| MAX IMAGE CIRCLE | Ø6.6 |
| CHIEF RAY ANGLE |
23°
|
| FOCAL LENGTH | f 3.3 mm |
| F/NO (INFINITE) | F/NO 2.0 |
| TOTAL LENGTH | TTL 17 mm |
| FLANGE BACK LENGTH | FBL 1.8 mm |
| FIELD OF VIEW | D:111° H 98° V 56.6° |
| OPTICAL DISTORTION | -37.2% |
| RELATIVE ILLUMINATION | φ9(AA) |
| ELEMENT | 2G4P+IR |
Parking assistance: One of the main applications of SVC cameras is to help drivers perceive parking spaces and surrounding environments when parking, improving parking safety and convenience.
All-round view: Provide an all-round view around the vehicle, including bird's-eye view, top view and other perspectives, helping drivers fully understand the situation around the vehicle.
Real-time monitoring: Monitor environmental changes around the vehicle in real time, including obstacles, pedestrians, etc., and promptly remind drivers to pay attention to safety. Precise positioning: Through image processing algorithms, SVC cameras can achieve precise positioning of parking spaces and help drivers park accurately.
1. Check and clean materials
2. Assemble the bottom lens/spacer
3. Assemble the middle lens/spacer
4. Waterproof rubber ring
5. Assemble the lens
6. Lock the lid
7. Check the configuration file
8. Surface inspection
9. Glue UV glue
10. Curing UV glue
11. Waterproof test (airtight test)
12. Vibration test
13. Clean the dust caps
14. Attach IR
Spot check of finished product/warehouse for conformity
Q: What is the brand name of this product?
A: The brand name of this product is GTD.At present, the updated series is JZ, which is the subseries YTJZ of YTOT Optics.
Q: Where is this product made?
A: This product is made in China.
Q:Why do we choose Guangtongdian Technology?
A:We promise:All of our products are in line with industry standards.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All products were tested 100% before shipment.
Q:What is the applicable range of this product?
A:Car ,360 degree panoramic camera,SLR VR Camera,Medical,Sports DV,Self-driving car,look around,Infrared vehicle,ADAS,Driving recorder.
Q:Can your products pass ROHS certificate?
A:Yes,our products meet the industrial standards,like:TS16949/ISO9001/ROHS.
Q:Accept sample order?What is your minimum order quantity?
A:sample order is accept, but the price is different from the big ones.
Q:What are the shipping ways you can offer?
A:By air/sea according to customers’ requirements.Usually we use DHL, FedEX and other express services.
Q:Do your products come with warranty?
A:Yes,One year warranty for non-human damage.
