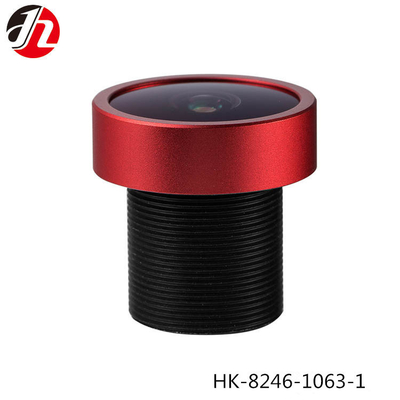

M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens

M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens
M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens

Large Image :  M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens

Product Details:
Place of Origin: CHINA
Brand Name: GTD
Certification: IATF 16949, ISO 9001
Model Number: HK-8246-1063-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: contact me
Packaging Details: The plastic box is loaded into the vacuum packaging bag and then loaded into the carton,also according to customers requirement
Delivery Time: 15 - 25 days after receipt of deposit / full amount
Payment Terms: T/T, L/C
Supply Ability: 500,000pcs/month

M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens

Description
Name: CS Mount CCTV Lens Color: Black , Red
Specification: HK-8246-1063-1 Sensor Size: φ6.95(1/2.7")
Wavelength: λ 400-700nm(COLOR) Field Of View (Diagonal): D 150°H 120°V 62°
Optical Distortion (Diagonal): <-70% Thread Size: M12 * P0.5
Element: 6G + IR
Highlight:

M12x0.5 CS Mount Camera Lens

,

1/2.7" CS Mount Camera Lens

,

3.0mm cs mount cctv lens

CS Mount Camera Lens HK-8246 Intelligent Auxiliary Drive Reverse Track Image Camera Lens



Application



digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field.



Product Details

SPECIFICATION: HK-8246-1063-1
Sensor size φ6.95(1/2.7")
WAVELENGTH λ 400-700nm(COLOR)
FOCAL LENGTH (EFL) f 3.0 mm
F/NO (INFINITE) F/NO 1.8
BACK FOCAL LENGTH BFL 5.48 mm
FLANGE BACK LENGTH FB 4.65 mm
FIELD OF VIEW (DIAGONAL) D:150°H 120°V 62°
OPTICAL DISTORTION (DIAGONAL) <-70%
Thread Size M12*P0.5
Element 6G+IR



· Name: Lens

· Brand: GTD

· Material: Gass



Lens production inspection process

Quality Guarantee

car camera drop-ball standard

salt spray test

waterproof test

against UV light

IP6K9K

IP68

ROHS

film strength's resistance to scratch

M12x0.5 CS Mount Camera Lens , F1.8 3.0mm CS Mount CCTV Lens 0



Company Profile

Guangtongdian Group Ltd was founded in 2005. So far, its total investment is RMB 250 million. Its headquarters is based in Shenzhen, with branches separately located in Dongguan of Guangdong Province, Xiangyang of Hubei Province and Nanyang of Henan Province.

The Group is an enterprise specialized in design development, production and sale of various optical lenses and optical components, which achieved a number of product patents. The products mainly contain wide-range lens, high-definition megapixel lens, standard fixed-focal lens, day-night confocal lens and telephoto lens etc. There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ASAS and car night-vision device etc.; smart homeware products, such as security and protection monitoring, APP Wifi camera, IP camera, smart digital door viewer, visual door bell, sweeping robot, refrigerator and air conditioner etc.; digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc.; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field. In addition, it is available to provide technical guidance for research and application of customized optical lens and components.

Since its establishment, the Group always carries through the mission of “building spirit, creating wealth, affecting oneself and benefiting others” and perseveres in development road of high precision, high standard and high speed. Additionally, it sets up a perfect system of production management, quality control and after-sales service via fully implementing quality management system standards of ISO 9001&ISO/ITAF:16949.
