Product Details:
|
| Specification: | JZ-9102-1707-1 | Sensor Size: | φ5 |
|---|---|---|---|
| Field Of View (diagonal): | D：163.6° H：142.2° V：115.4° | Optical Distortion(diagonal): | <-68% |
| Back Focal Length: | BFL 2.53 Mm | Element: | 2G2P + 1IR |
| Highlight: | reverse camera lens M12x0.5,1.2mm reverse camera lens,F2.4 camera lens for car |
||

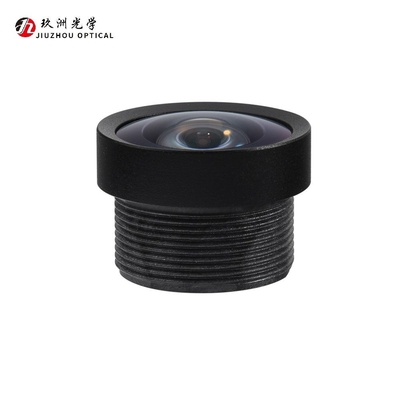

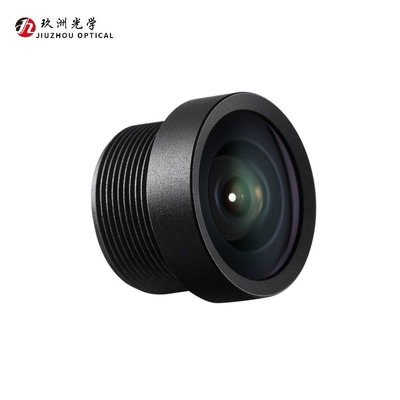

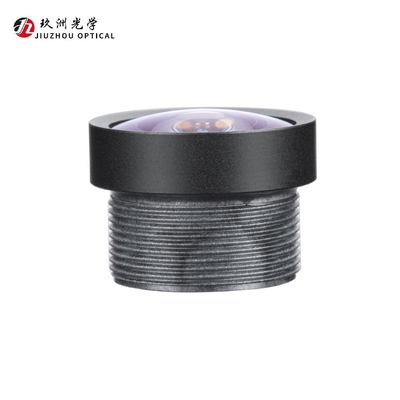

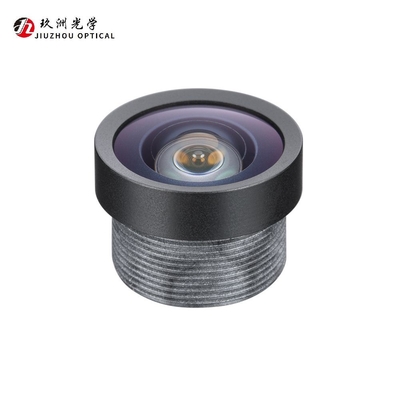

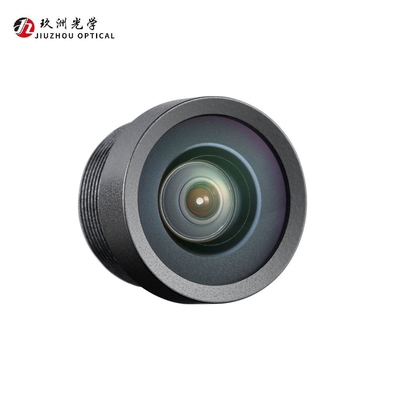

Automotive Camera Lens Car HD Camera VGA Reverse Image Lens
· Name: Lens
· Brand: GTD
· Material: rare metal
· Uses: security monitoring, digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc; and industrial products, such as smart iris recognition for machine, scanner, laser instruments and instruments widely used in optical field.
Product Details
| Specification | JZ-9102-1707-1 |
| Sensor Size | φ5 |
| Wavelength | λ400-700nm(COLOR) |
| Focal Length(EFL) | EFL 1.2 mm |
| F/NO (Infinite) | F/NO 2.4 |

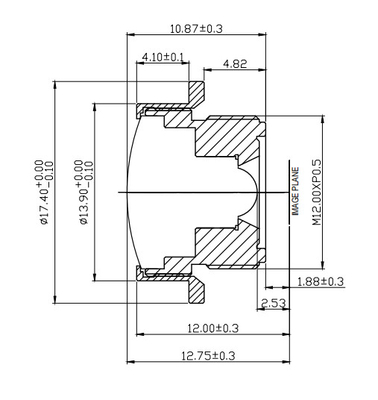

| Back Focal Length | BFL 2.53 mm |
| Flange back length | FB 1.91 mm |
| Field Of View (diagonal) | D:163.6° H:142.2° V:115.4° |
| Optical Distortion(diagonal) | <-68% |
| Thread Size | M12*P0.5 |
| Element | 2G2P + 1IR |
PRODUCTION PROCESS
1 check and clean materials
2 assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
