Product Details:
|
| Sensor Size: | OV2311（1/2.9") | Type: | Driver Fatigue Monitoring System Lens |
|---|---|---|---|
| Video Resolution: | 1600 * 1300 | Specification: | YJCM204 |
| CRA: | 22° | Field Of View (Diagonal): | D 180°H 180°V 110° |
| Optical Distortion (Diagonal): | -10.68% | Element: | 6G + IR |

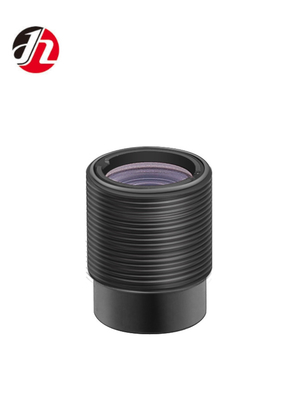

Driver Fatigue Monitoring System Lens ,Waterproof Infrared Vehicle Rear View Zoom Car Lens
We collect standard Ø8.0(AA) lenses for camera module options. We also support custom camera lens module as your requirements.
Product Details
| SPECIFICATION | YJCM204 |
| SENSOR SIZE | OV2311(1/2.9") |
| CHIEF RAY ANGLE | CRA 22° |
| FOCAL LENGTH (EFL) | f 4.95 mm |
| F/NO (INFINITE) | F/NO 2.0 |
| BACK FOCAL LENGTH | 940nm±10nm |
| FLANGE BACK LENGTH | FB 1.2mm |
| FIELD OF VIEW | D:69.9°H 55°V 44.9° |
| OPTICAL AXIS DEVIATION | ≦1° |
| THREAD SIZE |
Ø8.0(AA)
|
| ELEMENT | 6G+IR |
· Name: Lens
· Brand: GTD
· Material: rare metal,glasses,plastic
· Uses: The car camera has a series of intelligent lens equipment such as rearview mirror, 360-degree panoramic display, vehicle DVR, ADAS, and car night vision device.
PRODUCTION PROCESS
1 check and clean materials
2.assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
