Product Details:
|
| Name: | CCTV Wide Angle Lens | Material: | Glass |
|---|---|---|---|
| Sensor Size: | 1/4" | Wavelength: | λ 400-700nm（COLOR) |
| Optical Distortion (Diagonal): | ＜-1.5% | Thread Size: | M12 * P0.5 |
| Element: | 4G + IR | F/NO: | 2.8 |
| F: | 6.2 | ||
| High Light: | 6.2mm security camera wide angle lens,F2.8 security camera wide angle lens,1/4" wide angle lens for CCTV camera |
||

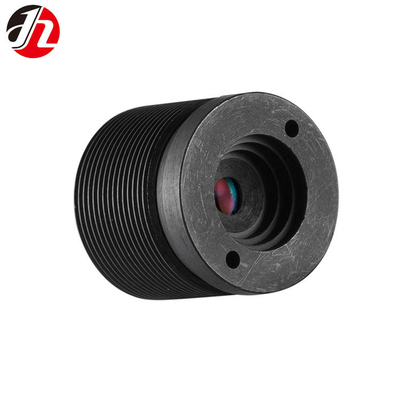

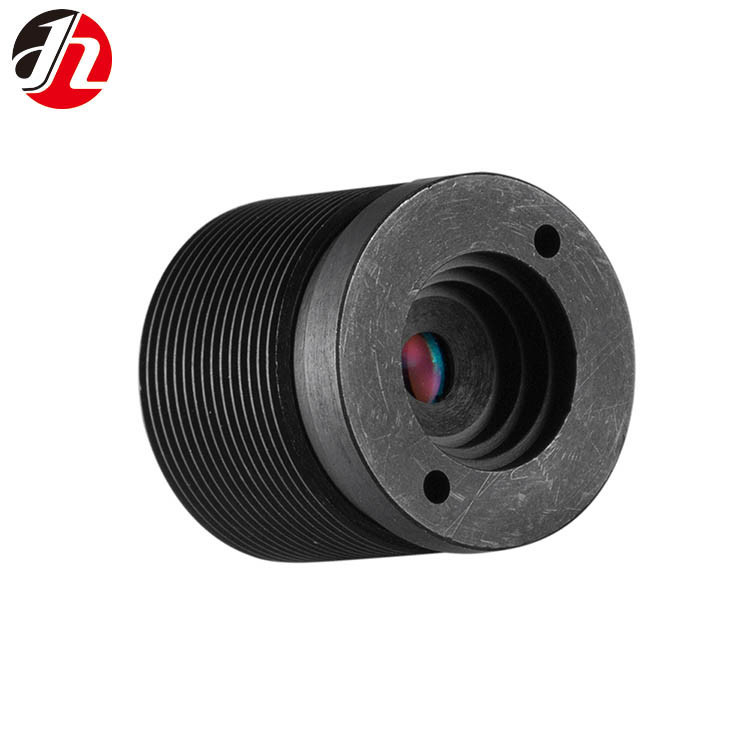

CCTV Wide Angle Lens Drone Refrigerator Microwave Oven Intelligent Fisheye Lens
With the use of advanced optical design technology, our lenses can get high definition and high contrast performance over the entire image field, from the center to the periphery. Also, these lenses are the most suitable for the image cut-out function of IP cameras.
Product Details
| SPECIFICATION: | HK-8006-J1 |
| Sensor size | 1/4" |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | f 6.2 mm |
| F/NO (INFINITE) | F/NO 2.8 |
| BACK FOCAL LENGTH | BFL 4.66 mm |
| FLANGE BACK LENGTH | FB 2.51 mm |
| FIELD OF VIEW (DIAGONAL) | D:40° H 30° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-1.5% |
| Thread Size | M12*P0.5 |
| Element | 4G+IR |
smart homeware products, such as security and protection monitoring, APP Wifi camera, IP camera, smart digital door viewer, visual door bell, sweeping robot, refrigerator and air conditioner etc
· Name: Lens
· Brand: GTD
· Material: GLASS
· Uses: Smart home, Drone,Refrigerator, Microwave oven, Video doorbell,Intelligent fisheye
