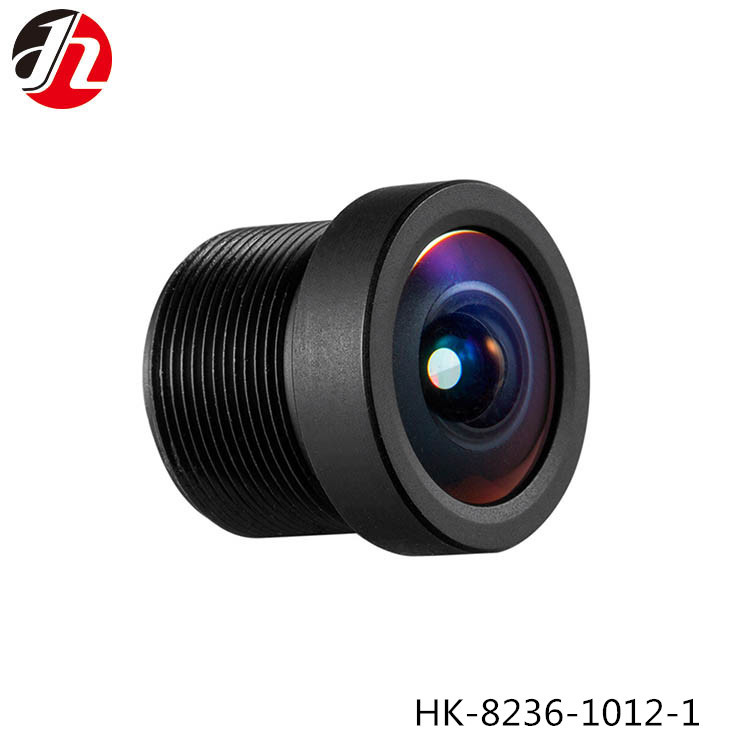

1/2.7" F2.8 3.8mm M12 Wide Angle Lens

Certification
China Shenzhen Guangtongdian Technology Co., Ltd. certification
China Shenzhen Guangtongdian Technology Co., Ltd. certification
I'm Online Chat Now

1/2.7" F2.8 3.8mm M12 Wide Angle Lens

1/2.7" F2.8 3.8mm M12 Wide Angle Lens
1/2.7" F2.8 3.8mm M12 Wide Angle Lens

Large Image :  1/2.7" F2.8 3.8mm M12 Wide Angle Lens

Product Details:
Place of Origin: CHINA
Brand Name: GTD
Certification: IATF 16949, ISO 9001
Model Number: HK-8236-1012-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: contact me
Packaging Details: The plastic box is loaded into the vacuum packaging bag and then loaded into the carton,also according to customers requirement
Delivery Time: 15 - 25 days after receipt of deposit / full amount
Payment Terms: T/T, L/C
Supply Ability: 500,000pcs/month

1/2.7" F2.8 3.8mm M12 Wide Angle Lens

Description
Specification: HK-8236-1012-1 Sensor Size: φ7(1/2.7")
Wavelength: λ 400-700nm(COLOR) Focal Length (EFL): F 3.8 Mm
F/NO (Infinite): F/NO 2.8 Field Of View (Diagonal): D 100°H 86°
Optical Distortion (Diagonal): <-3% Element: 6G + IR
Highlight:

1/2.7" m12 wide angle lens

,

3.8mm m12 wide angle lens

,

F2.8 m12 mount lens

M12 Camera Lens Panoramic SLR Camera Lens 3D Panoramic Camera Lens Sports DV Lens



· Name: Lens

· Brand: GTD

· Material: Glass

· Uses: smart homeware products, such as security and protection monitoring, APP Wifi camera, IP camera, smart digital door viewer, visual door bell, sweeping robot, refrigerator and air conditioner etc.; digital products, such as sports DV, aerial photo, panorama camera, recorder for law enforcement, AR/VR etc



Product Details

SPECIFICATION: HK-8236-1012-1
Sensor size φ7(1/2.7")
WAVELENGTH λ 400-700nm(COLOR)
FOCAL LENGTH (EFL) f 3.8 mm
F/NO (INFINITE) F/NO 2.8
BACK FOCAL LENGTH BFL 7.78 mm
FLANGE BACK LENGTH FB 6.88 mm
FIELD OF VIEW (DIAGONAL) D:100°H 86°
OPTICAL DISTORTION (DIAGONAL) <-3%
Thread Size M12*P0.5
Element 6G+IR



Product features

1. Car recorder lens with All glass (Or glass plastic)lenses and metal barrel.

2. Car rear view lens with waterproof and wide angle lens.

3. 360° panoramic surveillance CCTV camera lens.

4. High definition lenses with optical filter.

5. Can be used in multiple field



1/2.7" F2.8 3.8mm M12 Wide Angle Lens 01/2.7" F2.8 3.8mm M12 Wide Angle Lens 11/2.7" F2.8 3.8mm M12 Wide Angle Lens 2



Lens production inspection process

Quality Guarantee

car camera drop-ball standard

salt spray test

waterproof test

against UV light

IP6K9K

IP68

ROHS

film strength's resistance to scratch
