Product Details:
|
| Sensor Size: | 1/2.7"(ov2735) | Type: | Car Camera Lens |
|---|---|---|---|
| Video Resolution: | 1920 * 1080 | Specification: | HK-8135-342-1 |
| Wavelength: | λ 400-700nm（COLOR) | Field Of View (Diagonal): | D 180°H 180°V 110° |
| Optical Distortion (Diagonal): | ＜-20% | Element: | 6G + IR |
| High Light: | 1.35mm Board Camera Lenses,F2.25 Board Camera Lenses,Car Camera Lens ov2735 |
||

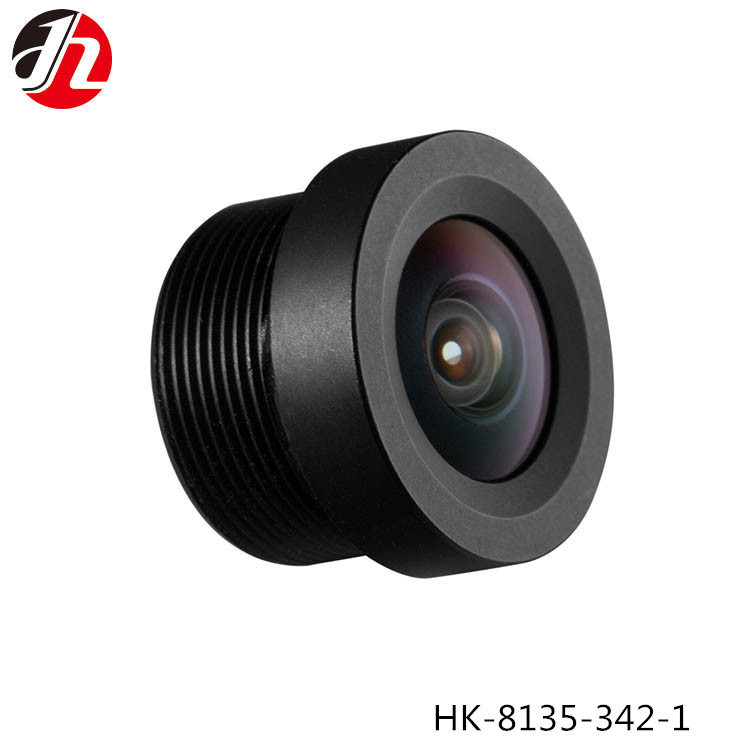

Board Camera Lenses HD1080p Waterproof Infrared Vehicle Rear View Zoom Car Lens
We collect standard M12 mount lenses for board camera module options. We also support custom camera lens module as your requirements.
Product Details
| SPECIFICATION: | HK-8135-342-1 |
| Sensor size | 1/2.7"(ov2735) |
| WAVELENGTH | λ 400-700nm(COLOR) |
| FOCAL LENGTH (EFL) | f 1.35 mm |
| F/NO (INFINITE) | F/NO 2.25 |
| BACK FOCAL LENGTH | BFL 3.20 mm |
| FLANGE BACK LENGTH | FB 2.50 mm |
| FIELD OF VIEW (DIAGONAL) | D:180°H 180°V 110° |
| OPTICAL DISTORTION (DIAGONAL) | ＜-20% |
| Thread Size | M12*P0.5 |
| Element | 6G+IR |
· Name: Lens
· Brand: GTD
· Material: rare metal
· Uses: There are products useful for car camera, such as rear-view parking track, 360-degree panorama display, car DVR, ADAS and car night-vision device etc
PRODUCTION PROCESS
1 check and clean materials
2.assemble bottom lens/spacer
3 assemble middle lens/spacer
4 waterproof rubber ring
5 assemble top lens
6 lock lid
7 profile check
8 surface check
9 gelling UV glue
10 solidify UV glue
11 waterproof test(air tightness test)
12 vibration test
13 clean surface dust cap
14 stick IR
15 spot check finish product/warehouse if qualified
